Hospital Oncohematológico. Murcia. España.

2011(P) – 2020 (O)

Ampliamos del Hospital Morales Meseguer de Murcia. Reúne los usos de Hospital de Día Oncohematológico,  Hospital de Día Polivalente, Fisioterapia, Área Intervencionista (Endoscopias Digestivas,  Neumología,  Alergología,  Cardiología) y Residencia del Personal de Guardia.

El nuevo pabellón mantiene  vinculación funcional con el contiguo hospital, especialmente entre la zona de Técnicas y la de quirófanos, UCI e incluso hospitalización. Esa vinculación es especialmente evidente en la planta primera, toda vez que se pretende la reforma del primer piso del Bloque D de dicho hospital para integrarlo dentro de esquema operativo y funcional del edificio de nueva planta .

Los criterios de orden general requeridos por la propiedad y que se han respetado en el desarrollo del proyecto han sido:

* Asegurar una compatibilidad entre la obra de reforma/ampliación con la actividad del hospital.

* Bloque actividad ambulatoria con circuitos muy definidos

* Conexión de las áreas de pruebas médicas con la zona quirúrgica del bloque D. Proximidad a la UCI.

* Relación cómoda del hospital de día y la zona de pruebas intervencionistas.

Los objetivos perseguidos en el proyecto son los siguientes:

– Favorecer la accesibilidad de los usuarios desde el exterior. Dado que se trata de realizar básicamente un Hospital de Día, es vital que se favorezca el acceso a todos los servicios al enfermo de forma ambulatoria, sin integrarse en los circuitos funcionales del resto del Hospital.

– Salvar la conexión funcional con dicho bloque en todas las plantas, especialmente entre las pruebas intervencionistas y el bloque quirúrgico y en la proximidad de los monta camillas de UCI.

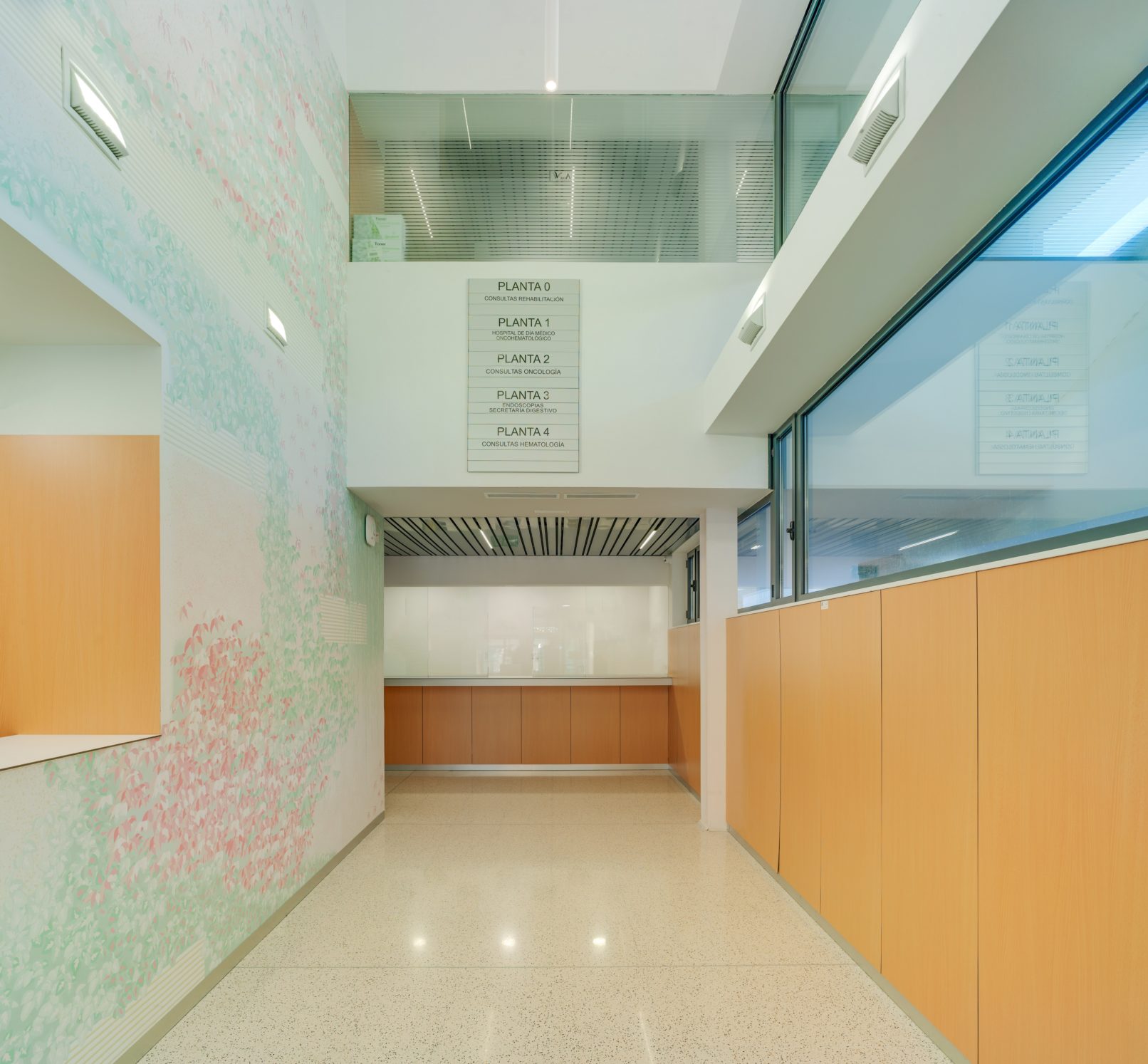

– Establecer un circuito de comunicaciones verticales para usuarios y otro para el personal sanitario. Evitar al máximo mezclar las circulaciones entre unos y otros usuarios.

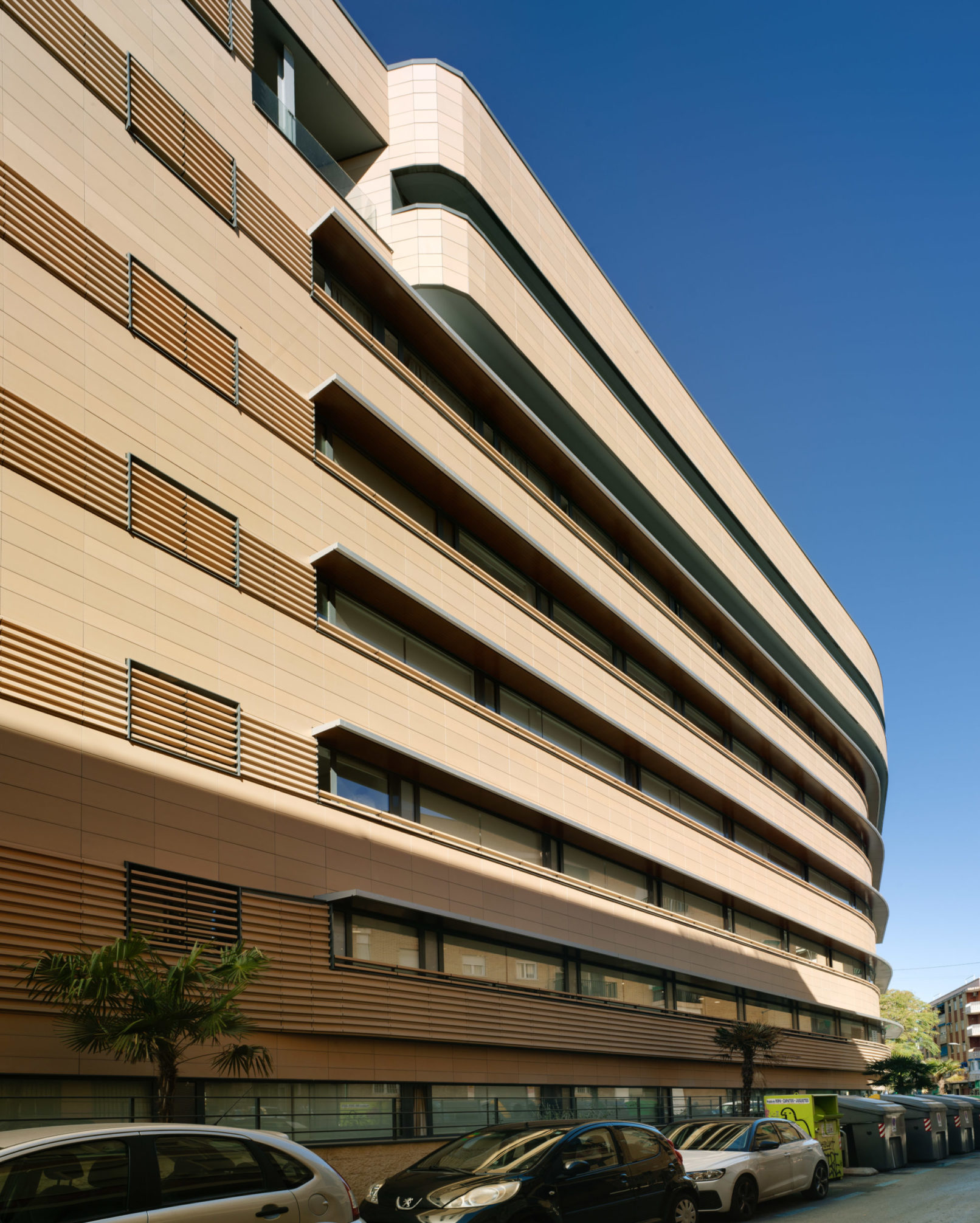

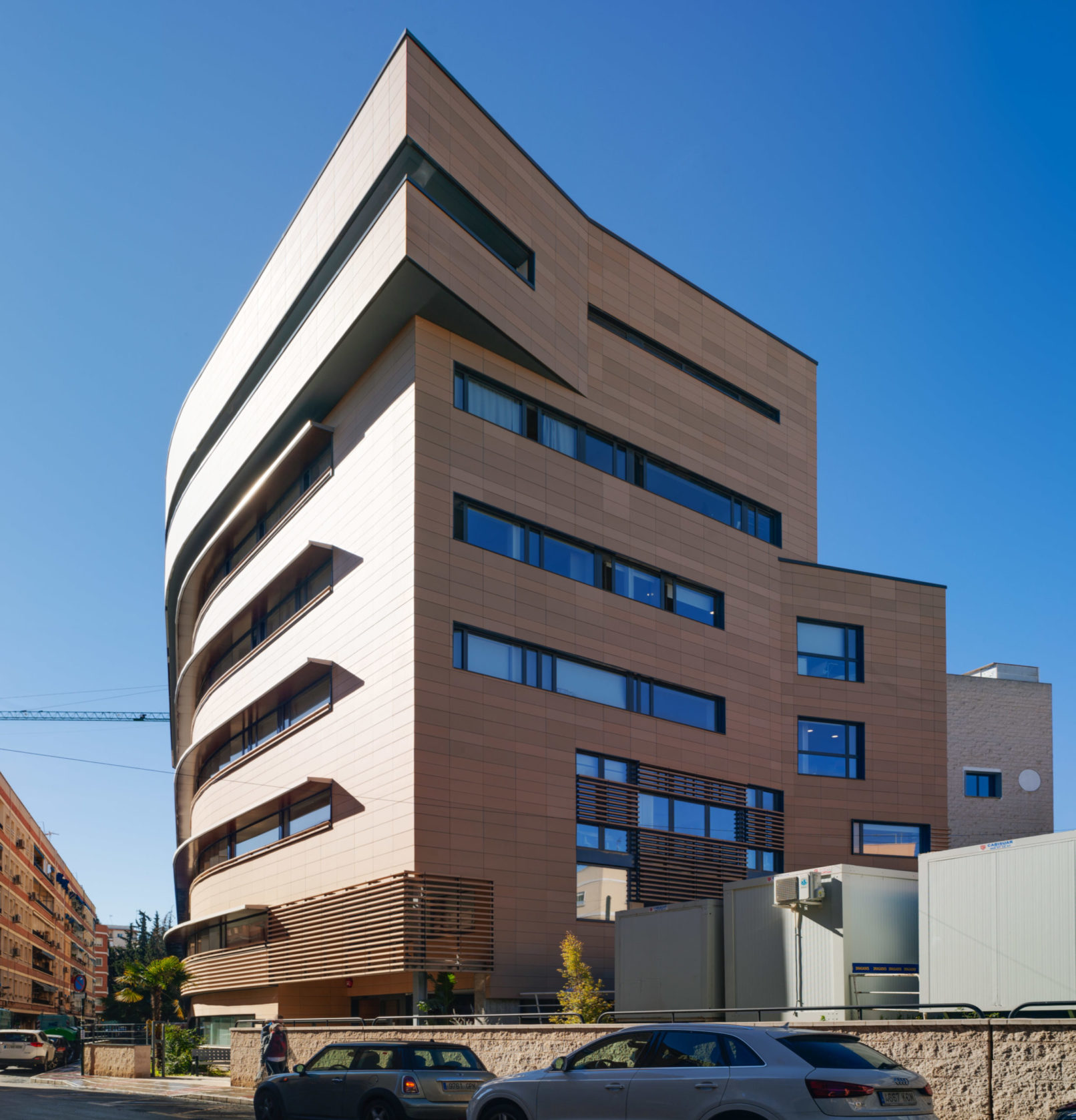

– Garantizar que se pierde el mínimo de iluminación y vistas del bloque D existente al que nos adosamos. Para ello se ha diseñado un vacío de separación entre la obra de nueva planta y el bloque D que se va haciendo tanto más grande cuanto más alto se encuentra. Así favorecemos de luz natural al edificio antiguo y segunda fachada y ventilación cruzada al nuevo.

– Buscar la máxima privacidad de la zona descanso del personal de guardia, sin hipotecar su conexión funcional con el hospital. Para ello, se ha dispuesto en las últimas plantas.

EXPANSION OF MORALES MESEGUER HOSPITAL  IN MURCIA (Spain).

This building includes an Oncohematology Day Hospital, Multipurpose Day Hospital, Physiotherapy, Interventional Area (Digestive Endoscopies, Pneumology, Allergology, Cardiology) and Duty Personnel Residence.

The new pavilion maintains a functional link with the adjoining hospital, especially between the techniques area and the operating rooms, ICU and even hospitalization. This link is especially evident on the first floor, since the reform of the first floor of Block D of said hospital is intended to integrate it into the operational and functional scheme of the new building.

The general order criteria required by the property and that have been respected in the development of the project have been:

* Ensure compatibility between the renovation/extension work and the hospital’s activity.

* Ambulatory activity block with well-defined circuits.

* Connection of the medical testing areas with the surgical area of ​​block D. Proximity to the ICU.

* Comfortable relationship between the day hospital and the interventional testing area.

The objectives of the project have been the following:

– Favor the accessibility of users from the outside. Given that it is basically a Day Hospital, it is vital that access to all services is favored for the patient on an outpatient basis, without being integrated into the functional circuits of the rest of the Hospital.

– Save the functional connection with said block on all floors, especially between the interventional tests and the surgical block and in the vicinity of the ICU stretcher lifts.

– Establish a vertical communications circuit for users and another for health personnel. Avoid as much as possible mixing circulations between one user and another.

– Guarantee that the minimum lighting and views of the existing block D to which we are attached are lost. To this end, a separation void has been designed between the new construction and block D, which becomes larger the higher it is. Thus we favor natural light to the old building and second facade and cross ventilation to the new one.

– Seek the maximum privacy of the rest area of ​​the staff on duty, without jeopardizing its functional connection with the hospital. To do this, it has been arranged on the top floors.
